The ability to switch 240 volt or 110 volt mains power safely & simply.

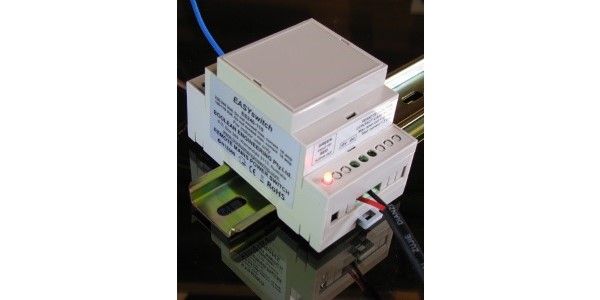

BOOLEAN ENGINEERING Pty Ltd – EASYdin – DIN rail version of EASYswitch for Remote Power Control. The ability to switch 240 volt or 110 volt mains power safely and simply is achieved by this locally made, DIN rail compliant device. The EASYdin provides on – off control of the mains via external contact closure, 5 volt, 12 volt or 24 volt signal.
Rugged relay capacity of 1 pole 16A, 1 form C (CO) contact for inrush peak currents up to 30A max. for 4 seconds.
Requiring only a volts free contact closure to switch the full mains supply, it can be operated over kilometres of basic telephone wire by a switch, relay contact or open collector transistor as used in controllers, A/V and Security equipment.
With user selectable mains supply (240V or 110V), and selectable output supply of normally open (NO) or normally closed (NC), designers and installers need stock only one device for universal power control.
Where is the EASYdin Used?
Audio, Home Theatre, Lighting, Security and Automation equipment all benefit from remote switching provided by the EASYdin. Legally and safely switch mains power. 1000’s are in use throughout Australia by the electrical and electronics industry.
How is the EASYdin used in NO operation?
1. Connect incoming Line to terminal LINE IN L, and Neutral to a NEUTRAL COMMON N terminal.
2. Connect the required LINE OUT NC or NO and unused NEUTRAL COMMON N to the controlled load.
3. Attach signal wire or similar to the control terminals.
4. Run the control wire to the remote switch mechanism.
5. Switch on source of 24O volt power.
6. GREEN LED indicates power on and the load de-energised.
7. Short remote control contacts terminals of the EASYdin.
8. RED LED indicates active out and the load energised.
