Sound files can be a recorded message, a music track, fault reporting, etc. in MP3 or WAV format

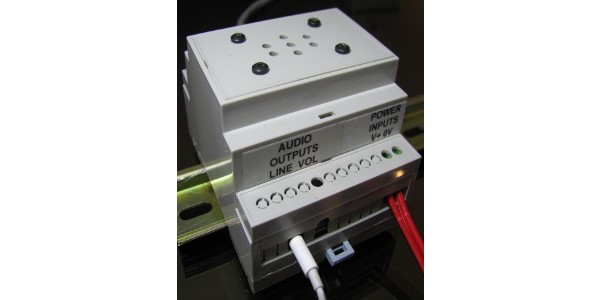

BOOLEAN ENGINEERING Pty Ltd – EASYsfx – DIN rail, selectable Message Annunciator, Audio, SFX. The EASYsfx is a message player, in a DIN rail housing, with a MP3/WAV Player Board and 10W amplifier triggered from 4 external triggers.
The sound module can be controlled by 4 separate, voltage free (dry) contacts for ‘one-on-one’ inputs and by UART R232 serial port working with a MCU.
Great audio output, industry-grade design and strong anti-jamming capability make it possible to be used for many different applications.
Sound files can be a recorded message, a music track, fault reporting, etc. in MP3 or WAV format. These files are stored on a Micro SD card. Audio is output via a local 6W speaker (mutable), local earbuds or a stereo line level, for further amplification.
EASYsfx Features:
1. With high quality audio decoder, supports MP3 and WAV audio formats.
2. Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(KHz).
3. 24 bit DAC output and supports dynamic range 90dB and SNR 85dB.
4. Supports one-on-one 4 button trigger control mode and RS232 serial port control mode.
5. In button control mode, it plays back 4 sounds one-on-one by negative triggering.
6. Uses micro SD card and the built-in SPI flash memory for storage devices.
7. Built-in 4MB SPI flash memory by default, and supports max. 16MB.
8. Supports max. 32GB micro SD card.
9. Possible to load audio files to the flash memory directly via the micro USB connecting with computer like
using a USB flash drive.
10. Equipped with a mono 10 watts amplifier that can drive a 10 watts speaker directly.
11. Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect with an external amplifier.
12. Adjustable sound volume with the potent
13. Wide range for power input(DC8-24V)
